Three-phase synchronous generators

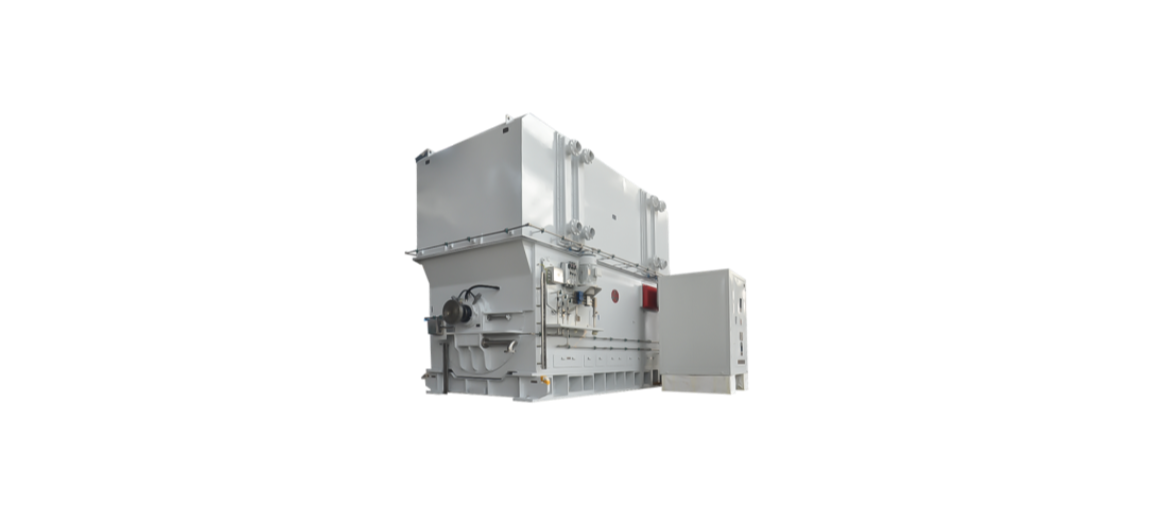

Box type brushless excitation synchronous generators

It has the characteristics of compact, light weighted, high power output, high efficiency, low noise, low vibration, safe and reliable operation and convenient use and maintenance. This series of generators can be matched with various engines such as steam turbines, industrial turbines, gas turbines and diesel engines, and are widely used in small power plants, portable power plants, self-contained power plants, residual heat and pressure power generation, biomass power generation, photothermal power generation, offshore platforms and other places.

Product Features

High reliability

Reliable insulation; Dual-channel double-bridge excitation controllers;
Compact brushless excitation structure
Excellent performance

Low vibration; High efficiency;
Stator temperature measurement and other detection configurations;
Convenient installation

Box type, complete shipment; Compact size, light weighted, saving on-site installation space.
High protection level and long overhaul period
Wide application

Suitable for small power plants, portable power plants, self-contained power plants, waste heat and pressure power generation, biomass power generation, photothermal power generation, offshore platforms and other places.

Working conditions

-20℃ ~+40℃ (Standard)
-52℃ ~+50℃ (Customized)
Ambient air temperature
≤90% (at 25℃)
Humidity
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude

Specifications

Cooling method	IC81W, IC86, IC616, IC666
Power range	3000-100000kW(4000-136000HP)
Speed range	1500-3600rpm
Voltage range	6000-15750V
Protection grade	IP54, IP55, IP56 (Custimzed)
Explosion proof type	Exec, Ex pxb, Ex pzc
Rotor material	Alloy forged steel
Mounting type	IM1001, IMB7315, IM7115
Bearing	Seated slide bearing
Standards	IEC
Certifications	ATEX, IECEx, CCC, CE
Applications	Blast furnace fans, sintering fans, air separation devices and large compressors.
