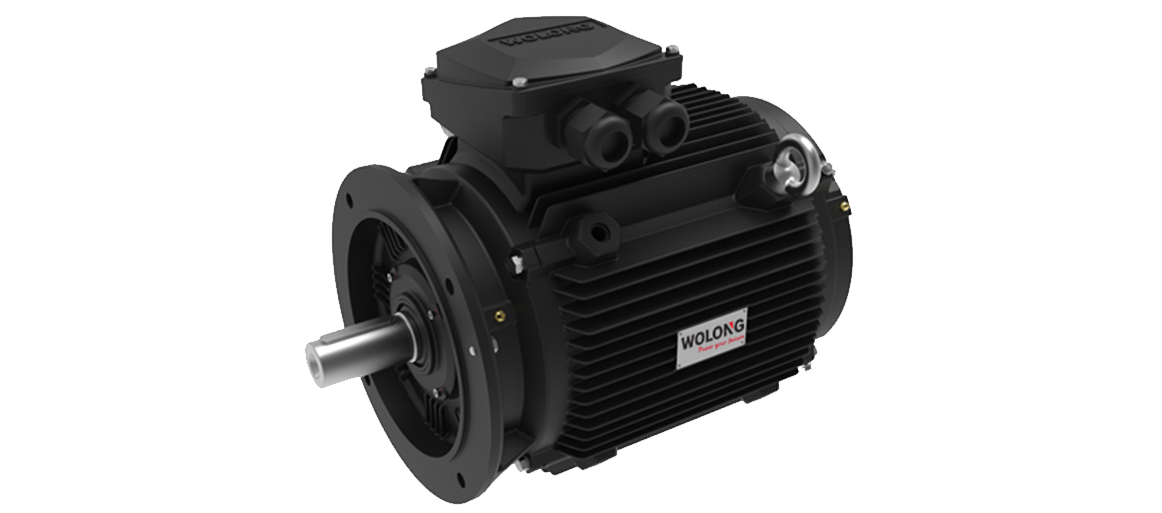

TYCP5 Series Low Speed Direct Drive Permanent Magnet Synchronous Motor
TYCP5 covering a full range of frame sizes from H180 to H560, with power ranging from 1.1kW to 900kW.Energy efficiency level reaching IE5.Capable of achieving S-curve start-up under low-speed heavy loads.Offering advantages such as low speed, high torque,
Product Features
-
Independent R & DIndependently develop a series of products.
-
Excellent PerformanceIt can achieve S-curve starting under low-speed and heavy-load conditions, with many advantages such as low speed, high torque, high transmission efficiency, stable operation, compact structure, and small space occupation.
-
Product FeaturesIt has the characteristics of beautiful appearance, high efficiency, low noise, low vibration, safety and reliability, and convenient maintenance.
-
Wide ApplicationIt is suitable for mechanical equipment that requires speed regulation and continuous operation with low-speed and high-torque, such as mixing tanks, belt conveyors, hoists, ball mills, crushing machinery, cooling towers, etc.
Operating Conditions
-
-15℃～+40℃Ambient temperature
-
Monthly average ≤90%Humidity
-
≤1000m.a.s.l.Altitude
Product Parameters
| Frame size | IEC180 ～560 |
| Rated power | 1.1kW～90kW |
| Rated voltage | 50Hz:380V/660V |
| Rated speed | 25r/min～500r/min |
| Energy efficiency | IE5 |
| Mounting option | B3, V1 |
| Insulation | F 级（B，△ T 80K） |
| Enclosure | IP55 |
| Cooling type | IC410、IC70W |
| Ambient temperature | 40℃, 1000 meters above sea level |
