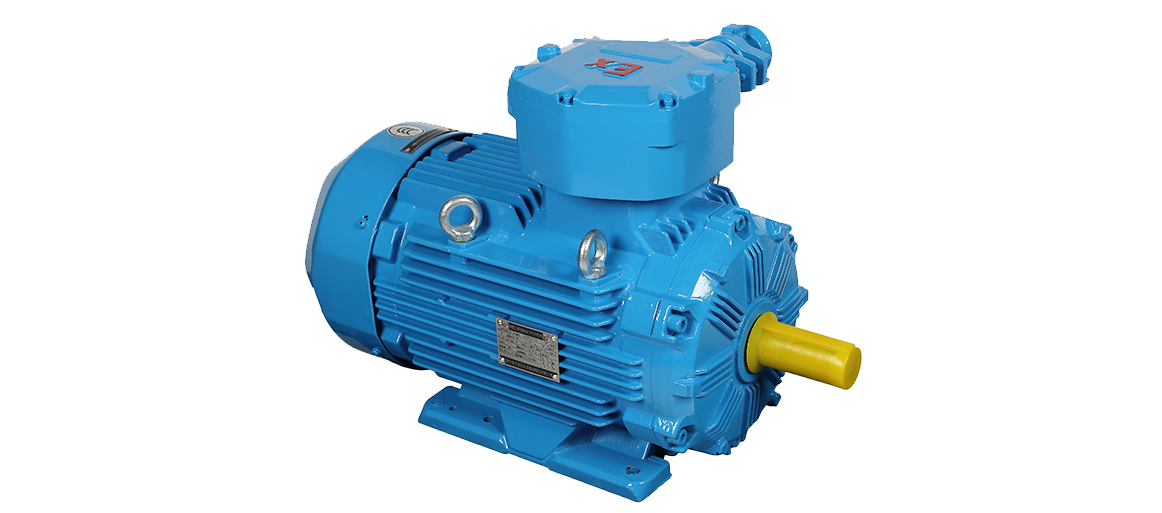

TBYBP series flameproof variable frequency speed permanent magnet synchronous motor

The TBYBP series is an explosion-proof permanent magnet product designed and developed on Wolong's globally unified design platform using an advanced modular design concept. The motor is characterized by a rotor with a permanent magnet, featuring higher e

Product Features

Independent R & D

Independently develop a series of products with excellent performance.
Excellent Performance

It has the ability of field-weakening speed expansion, can operate at an overspeed, has a wide speed regulation range, and has a significant energy-saving effect.
Product Features

It has the characteristics of a beautiful appearance, high efficiency, low noise, low vibration, safety and reliability, and convenient maintenance.
Widely Applied

It can be applied in different industries such as petrochemical, coal mining, mining, ports, power plants, and mechanical industry.

Operating Conditions

-20℃～+40℃

Ambient temperature
The monthly average maximum relative humidity does not exceed 90%(when the temperature is 25℃)

Humidity
≤1KM

Altitude

Product Parameters

Frame size	IEC80 ~ 400
Rated power	1.1kW～1000kW
Rated voltage	380V,660V,1140V
Rated speed	3000, 1500, 1000r/min
Energy efficiency	IE5
Duty	S1
Mounting option	B3, B5, B35, V1
Insulation	Class F (B, △ T 80K)/Class H is optional
Enclosure	IP55，IP56，IP65
Cooling type	IC411、IC416
Explosion-proof level	Ex db I Mb, Ex db II B T4, Ex db II C T4
