Servo drives

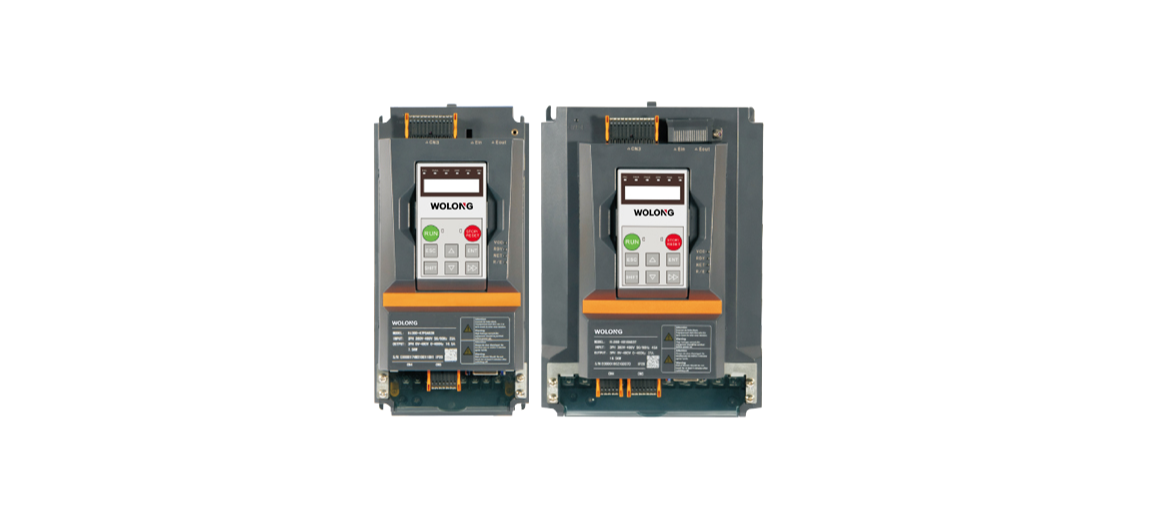

W series AC servo driver

W series AC servo drive has strong versatility, a variety of control methods and position, speed, torque mode can be freely switched, with self-tuning, inertia identification, advance feed, friction/gravity compensation and other advanced functions, anti-

Product Features

Debugging simplification

With automatic gain adjustment, gain switching, torque compensation, vibration suppression, advance feed control and other rich functions, debugging is simple and fast
Convenient

Perfect host software function,debugging is convenient
Precision

Standard 20-bit incremental photoelectric encoder, fast response, high control accuracy, and compatible with 17-bit / 23-bit optical/magnetic encoder and rotary transformer
Variety of control methods

With position, speed, torque control mode, full closed loop control, EtherCAT and other control methods
Light and handy

Compact structure, easy to install

Product Parameters

Voltage	Single-phase/three-phase AC 220V, 380V
Power range	50W-30kW
Control mode	Position, speed, torque, EtherCAT
Encoder	17/20/23-bit single/multi-turn encoder and rotary transformer
Pulse signal	Up to 4Mpps
Analog signal	3 channels, -10V to +10V
self-learning	Products above 5KW
Digital IO	6 inputs, 3 outputs
Communication	RS232/485
Regenerative resistance	750W and above built-in
Dynamic brake	Built-in below 5KW
Vibration suppression	Four notch filters and four terminal vibration suppression
