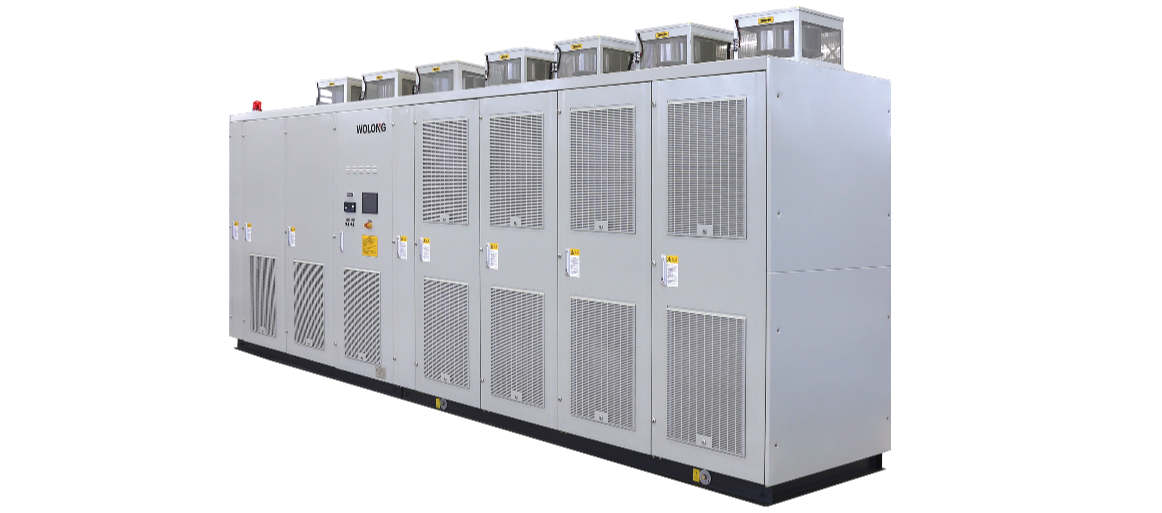

5100 Series Air-cooled High Voltage VFD
The variable frequency system adopts voltage source type multi-level topology and split cabinet design. The power cells are equipped with dry metalized film capacitors. The variable frequency system adopts dry phase-shifting transformer, applying multi-pu
Product Features
-
Split cabinet structure designVoltage source type multi-level topology, split cabinet design
-
Film capacitorsSelect dry type metalised film capacitors
-
High performanceHigh efficiency, high power factor, no special requirements for the motor
Operating Conditions
-
0℃～+40℃Ambient air temperature
-
Monthly average ≤90%Humidity
-
≤1000m.a.s.l.Altitude
Product Parameters
| Model | RMVC/WD(5100 Air-cooled Series ) |
| Capacity Range | 200kVA~20000kVA【Take 10kV for example】 |
| Input Voltage | 3.3kV~35kV |
| Output Voltage | 3.3kV~13.8kV |
| System Composition | Pre-charging cabinet, phase shifting transformer, power cell cabinet, control cabinet |
| IGBT Voltage | 1700V |
| Transformer Type | Dry type phase shifting transformer |
