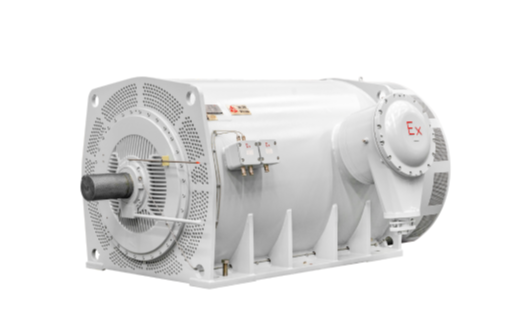

Three-phase induction motors

TEAAC series

The TEAAC series motors are high-efficiency, energy-saving, and environmentally friendly, featuring a lower shaft height, higher power output, improved efficiency, reduced noise levels, safe and reliable operation, and ease of maintenance. They are suitable for driving various ventilation fans, compressors, water pumps, crushers, cutting machinery, transportation equipment and general machinery in diverse industrial applications such as Mining, Steel, Machinery, Oil & Gas, Chemical and Power Stations.

Product Features

High reliability

Reliable insulation and long lifespan;
Robust bearing structure;
Excellent performance

Excellent starting performance;
High efficiency: IE4 and above;
Low vibration: ≤1.2mm/s; Low noise.
Customized design

Modular design;
Flexible structure to meet various requirements from customers.
Easy maintenance

Large injection space;
Extended lubrication intervals (1.5x);
Full life cycle services

Working conditions

-20℃ ~+40℃ (Standard)
-60℃ ~+60℃ (Customized)
Ambient air temperature
≤90% (at 25℃)
Humidity
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude

Specifications

Cooling method	IC611, IC616, IC666
Power range	160-20000kW(210-27000Hp)
Frame size	H355-1400
Speed range	300-3600rpm
Frequency	Fixed (50Hz/60Hz)/Variable
Voltage range	3000-13800V
Protection grade	Up to IP66
Explosion proof type	Ex ec, Ex pxb, Ex pzc, Ex tb
Rotor material	Cast aluminum/copper bars
Mounting type	IMB3, IMB35, IMV1
Standards	GB, IEC, NEMA, BS, API, EN
Certifications	IEC Ex, ATEX, CCC, CSA, UL
